Welcome to the essential guide to one of the Airbus A320’s most crucial safety features: Alpha Floor Protection! Whether you’re an aspiring pilot, a seasoned aviation enthusiast, or simply curious about the sophisticated systems that keep our skies safe, understanding Alpha Floor is key. This article will demystify this vital aspect of the A320’s flight control system, ensuring you’re ready to soar with confidence.
Understanding Alpha Floor Protection
What is Alpha Floor?
Alpha Floor protection is a sophisticated safety feature integral to the Airbus A320’s envelope protection system, specifically designed for low-speed protection when the aircraft is operating in Normal Law. This crucial feature is a component of a custom autopilot and autothrust system, commonly found in all versions of the A32NX and the real Airbus A320. The Alpha Floor (A.FLOOR) will automatically trigger when the aircraft approaches a critical angle of attack, indicating an imminent stall in its current configuration. Essentially, Alpha Floor is a safety net that automatically commands maximum thrust, specifically TOGA thrust, even if the thrust levers are not in the full thrust position, to prevent a stall and add energy to the aircraft.
Functionality of Alpha Floor Protection

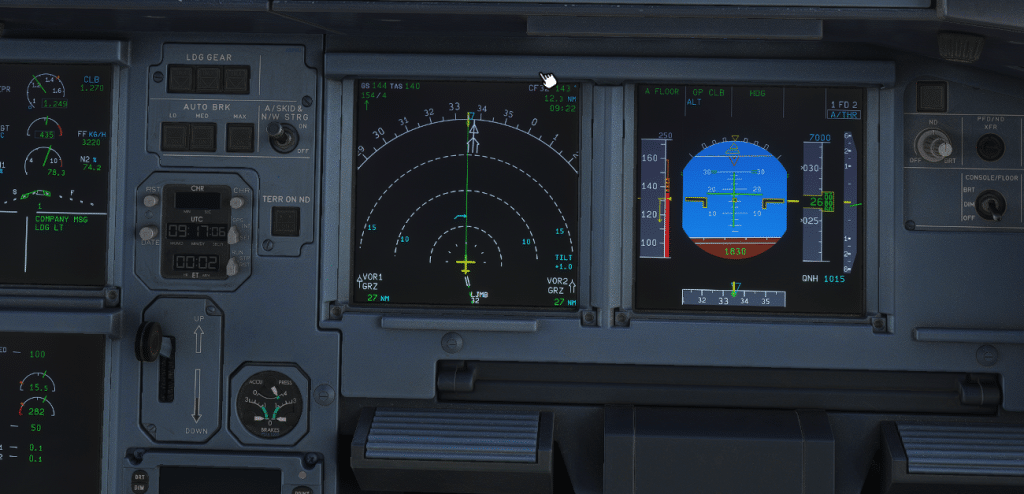

When the aircraft’s angle of attack and airspeed enter the designated alpha floor protection range, this critical state is clearly indicated to the pilot by an amber and black band appearing on the PFD speed tape. Once A.FLOOR protection becomes active, this vital status is prominently displayed in the leftmost Flight Mode Annunciator (FMA) on the PFD, appearing in green text with a flashing amber box around it to draw immediate attention. To safely recover from an A.FLOOR condition, the pilot must manually pitch the nose of the aircraft downwards, which increases airspeed and reduces the angle of attack. Once the angle of attack is sufficiently reduced and the aircraft’s speed moves out of the alpha protection range, the autopilot can then be safely re-engaged. This feature automatically increases aircraft thrust to TOGA thrust to provide an energy boost, helping the aircraft counteract the high angle of attack situation and prevent a stall, activating autonomously when the pilot has not adequately responded to a developing high angle of attack condition.
Importance in Aircraft Safety
Alpha Floor protection stands as a cornerstone safety feature within the comprehensive envelope protection system of the Airbus A320, specifically engineered to provide robust low-speed protection in Normal Law. This sophisticated system is meticulously designed to safeguard the aircraft from exceeding its operational limits, particularly preventing a stall by automatically applying TOGA thrust when a critical angle of attack is approached. Together, these advanced features—including high angle of attack protection and speed protection—significantly enhance both the safety and the overall handling characteristics of Airbus aircraft. They provide an invaluable layer of automated assistance, ensuring the aircraft remains within a safe flight envelope even during demanding conditions, thereby elevating the confidence and security of flight operations.
The A320’s Alpha Floor and TOGA Mechanism
How Alpha Floor Works with TOGA
When the Airbus A320 encounters an A.FLOOR condition, it signifies that the aircraft is approaching a critical angle of attack, often indicative of an impending stall. In most situations, this A.FLOOR condition is immediately followed by a TOGA LK (Takeoff Go-Around Locked) indication appearing on the PFD (Primary Flight Display). This automatic response is a cornerstone of the A320’s envelope protection system, designed to rapidly add energy to the aircraft. The alpha floor system automatically increases aircraft thrust to TOGA thrust, which is the maximum available thrust, to combat the high angle of attack situation and prevent a stall. With full thrust engaged and the sidestick typically pulled fully back, the aircraft usually initiates a climb, even at a very low speed, aiming to recover from the low-speed condition and increase airspeed.
Transitioning to TOGA LK Mode

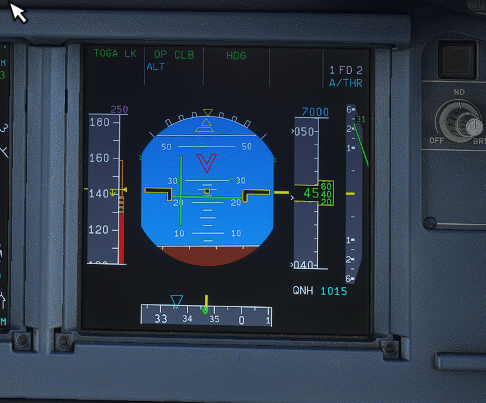

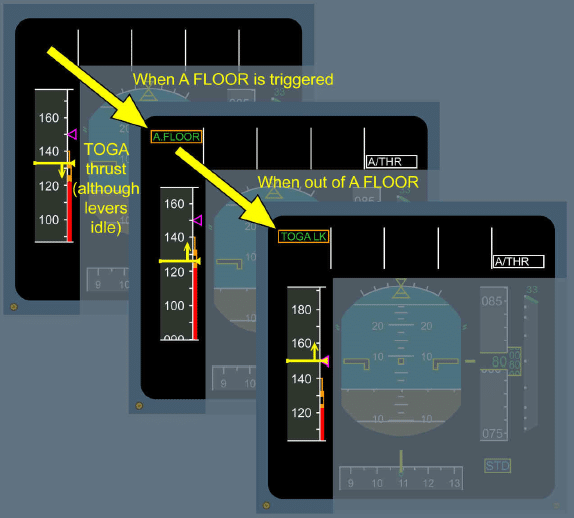

The transition to TOGA LK mode is a crucial safety mechanism that typically appears after the triggering of A.FLOOR protection on the Airbus A320. In this state, the TOGA (takeoff go around) thrust has been automatically set by the autothrust system and “locked” into place to provide maximum power for recovery from a high angle of attack. This specific autothrust mode will remain active and locked until the flight crew has safely resolved the previous A.FLOOR condition and the aircraft is no longer in a high angle of attack situation. Once the alpha floor mode is exited, the indication changes to TOGA LK (TOGA thrust locked) on the PFD, signaling that while the immediate danger has passed, maximum thrust is still engaged. To resolve TOGA LK, the crew must first disconnect the autothrust on the flight control unit (FCU), then set a new position for the thrust levers—often returning them to the CLB (climb) detent—and finally reactivate autothrust. After these steps are successfully completed, flight can be resumed normally with autothrust and autopilot enabled, and the aircraft can operate safely within its flight envelope.
Impact of Alpha Floor on Pitch Attitude
The primary objective of the alpha floor protection in the Airbus A320 is to prevent a stall by automatically applying TOGA thrust when a high angle of attack is detected. However, while the system provides the necessary thrust, pilot intervention regarding pitch attitude is still critical for a complete recovery. To effectively recover from an A.FLOOR condition and prevent further stall conditions, the pilot must manually pitch the aircraft’s nose downwards. This crucial action serves to increase the aircraft’s speed and, more importantly, to reduce the angle of attack, moving the aircraft out of the alpha protection range. Once the angle of attack is sufficiently reduced and the airspeed increases, the aircraft is no longer in a critical high angle of attack situation, allowing for safe flight to resume and the autothrust system to return to a normal operating mode, often exiting the TOGA LK condition.
(Video) A320 Alpha Floor Function Explained
High Angle of Attack Protection in the A320
Defining High Angle of Attack
In the sophisticated flight control systems of the Airbus A320, understanding the various angle of attack (AoA) thresholds is paramount for ensuring safety and preventing a stall. Alpha Max represents the absolute maximum angle of attack that the aircraft can achieve in flight without entering an unrecoverable stall, serving as a critical boundary. Below this, Alpha Prot is the specific angle of attack at which the aircraft’s advanced flight control laws automatically provide protection against stalling, a proactive measure to maintain safety margins. Furthermore, Alpha Floor is a vital safety feature that automatically triggers maximum thrust, specifically TOGA thrust, when the aircraft approaches a critical angle of attack that could lead to a stall, thereby adding energy to recover the airspeed.
Envelope Protection Features
The Airbus A320’s envelope protection system is meticulously designed to safeguard the aircraft from exceeding its operational limits, with Alpha Floor protection being a cornerstone for low-speed protection in Normal Law. In all Airbus aircraft, a distinctive black and amber band on the speed tape, known as the alpha prot, indicates the range where high angle of attack protection activates. When the aircraft’s speed enters this range, if the autopilot is engaged, it automatically disengages, initiating a descent until the speed at the top of the amber and black band is regained. At Alpha Prot, the flight control system intervenes, limiting pitch up and maintaining a safe margin from a stall. The Alpha Floor itself is activated through the autothrust system when the angle of attack exceeds Alpha Floor, or when sidestick deflection indicates a significant nose-up command, ensuring proactive stall prevention.
Consequences of Disabled Alpha Floor
While the Airbus A320’s high angle of attack protection, including the vital Alpha Floor, offers robust safeguards, it is crucial to understand that these advanced features primarily operate under Normal Law. If any aircraft failures or system malfunctions lead to a degraded flight control law, such as Alternate Law or Direct Law, the comprehensive protections offered by Alpha Floor are unfortunately lost. This means that in such rare but critical scenarios, the pilot’s direct control and manual intervention become even more essential for managing the aircraft’s angle of attack and preventing a stall, as the automated envelope protections are no longer active to provide their safety net.
Operational Scenarios: A320 to Land
Using Alpha Floor During Landing
The Alpha Floor function plays a critical, albeit nuanced, role during the landing phase of an Airbus A320. This vital low-speed protection feature is available to the flight crew from the moment of lift-off, and it remains active and ready to intervene until the aircraft reaches an altitude of 100 feet Radio Altitude (RA) before landing. Its availability during this crucial phase ensures that should an unexpected high angle of attack condition arise, for instance during a wind shear encounter or an uncommanded pitch-up, the Alpha Floor will automatically command TOGA thrust, providing the necessary energy to prevent a stall and maintain control during the approach and final stages of flight.
Handling Edge Cases with Alpha Protection
Even with the robust high angle of attack protection and Alpha Floor system in place, pilots of the Airbus A320 must be prepared to handle various edge cases that might challenge the aircraft’s envelope protection. Scenarios such as extreme turbulence, severe wind shear, or unexpected icing conditions can push the aircraft towards its angle of attack limits, even if the primary goal is a safe A320 to land. In such instances, while Alpha Protection will automatically engage, pilots must exercise their judgment and apply appropriate sidestick inputs and thrust lever adjustments to complement the automated systems. Understanding the nuances of Alpha Prot and Alpha Floor behavior in non-standard situations is key to maintaining a safe flight envelope.
Pilot Training and Alpha Floor Procedures
Comprehensive pilot training is absolutely essential for effectively utilizing and understanding the Alpha Floor procedures in the Airbus A320. Pilots undergo rigorous simulator sessions to experience and practice responses to high angle of attack conditions and Alpha Floor activations, ensuring they are proficient in managing the aircraft when the system commands TOGA thrust. This training covers not only the automatic engagement of Alpha Floor but also the subsequent steps, such as how to appropriately manage the thrust lever after TOGA LK engagement, and the necessary pitch attitude adjustments to recover safely. Mastering these procedures ensures that pilots can confidently and safely navigate critical low-speed scenarios, whether in routine flight or during unexpected events when bringing the A320 to land.
