Overseeing the proper shutdown of the APU MASTER SW when using bleed air is key to maintaining your A320’s turbine health and operational reliability. When you engage the shutdown sequence, an automatic cool-down phase managed by the ECB prevents heat soak damage, protecting internal components from thermal stress. Skipping this phase by cutting power immediately can lead to accelerated wear, oil coking, and premature maintenance. This guide walks you through the complete shutdown process so you can operate your APU safely and effectively every time.
The Mechanics of the MASTER SW Activation
Initiating the Sequence: What Happens When You Press

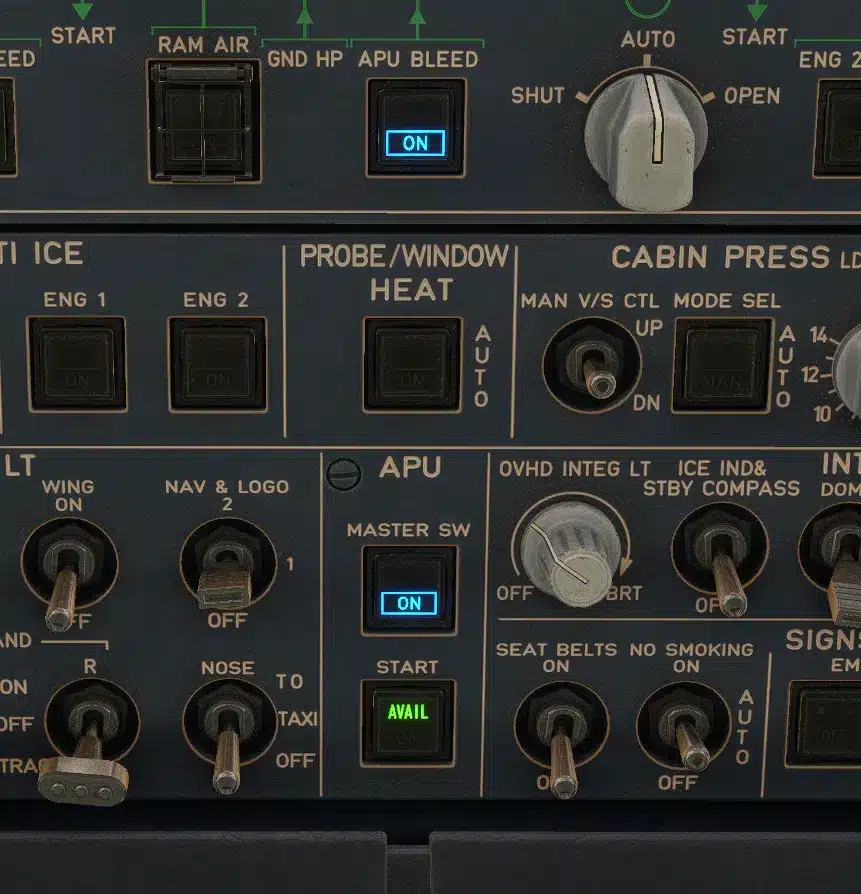

Pressing the APU MASTER SW initiates a carefully choreographed sequence controlled by the ECB, rather than simply cutting power. Your action triggers the APU’s internal control system to evaluate current operating conditions such as bleed air extraction status and turbine temperature. If bleed air is in use, the system automatically transitions into the cool-down phase rather than immediate shutdown, protecting the turbine from sudden thermal shock. This means the APU continues running at a reduced speed, allowing hot components to gradually reduce temperature under ECB supervision.
The MASTER SW pushbutton also commands closure of the APU inlet flap, but this flap closes only after the turbine has reached a predefined safe temperature threshold. If you were to try and force an immediate shutdown without this controlled process, the thermal strain could lead to serious component deterioration. The system’s responsiveness ensures that, from your press of the switch, the shutdown sequence is progressive, preserving the APU’s mechanical integrity while keeping you informed through ECAM indications and the AVAIL light status.
Understanding the Role of the ECB in APU Functionality
The Electronic Control Box (ECB) acts as the brain of the APU, managing every operational parameter from startup to shutdown. Rather than relying solely on pilot inputs, the ECB monitors turbine speed, temperature, bleed air flow, and electrical load to determine the safest operating profile. When you engage the MASTER SW for shutdown, the ECB coordinates the transition through cooling, flap closure, and eventual motor stop sequences—all without further intervention. This automation reduces pilot workload while ensuring correct adherence to manufacturer-recommended shutdown procedures.
VIDEO: A320 APU Explained
During bleed air use, the ECB adjusts cooling duration dynamically. For instance, if bleed air extraction elevates turbine temperatures above the typical threshold, the ECB extends the cool-down time proportionally. This adaptive control mitigates risks of thermal stress, oil coking, and accelerated wear within the turbine and gearbox. Without this intelligent management, operators would risk either premature component failure or unnecessary delays at shutdown.
Delving deeper, the ECB also controls diagnostic data output and fault detection, alerting you via ECAM if any parameters are outside prescribed limits. This proactivity allows you to intervene only when necessary, confident the system is otherwise managing the APU efficiently. By relying on the ECB’s integrated logic, you benefit from a safer, more reliable APU lifecycle tailored to the precise operational demands placed on it during flight and ground operations.
The Importance of APU Bleed Air in Operations
The APU’s bleed air supply plays a vital role in the A320’s ground and early flight operations. You rely on this bleed air primarily during engine start procedures, where it provides the pneumatic pressure necessary to spin the main engines’ compressors before fuel introduction. Without the APU bleed, starting engines in certain conditions—such as cold weather or high-altitude airports—becomes far more challenging and time-consuming. Additionally, the bleed air supports the aircraft’s air conditioning systems on the ground, maintaining comfortable cabin temperatures while the engines are off.
By enabling environmental control systems without requiring main engines to run, you reduce unnecessary wear and fuel consumption. However, because extracting bleed air significantly raises temperatures within the APU’s turbine section, operations involving bleed air demand respect for the specific shutdown and cooling sequences embedded into the system. Mismanaging these can directly affect the longevity and reliability of your APU unit.
Key Applications: From Engine Starts to Cabin Conditioning
During engine start, the APU bleed air delivers high-pressure pneumatic energy to the engine’s starter system, ensuring a smooth and reliable spool-up. This is especially useful during multiple starts or operating in hot-and-high conditions where air density is lower. Furthermore, on the ground, the bleed air feeds the environmental control system, allowing cabin pressurization and temperature regulation while engines remain off, improving passenger comfort without incurring the cost of engine idling.
Beyond these, certain operational scenarios—such as single-engine taxi or maintenance checks—also benefit from APU bleed air, minimizing fuel burn and noise footprint. The versatility of the APU bleed enables you to manage aircraft systems efficiently, but with this flexibility comes the need for meticulous system handling, particularly when transitioning from bleed air use to shutdown.
The Consequences of Mismanagement: Heat Production and Damage Risks
Extracting bleed air pushes the APU’s internal turbine and gearbox temperatures into a higher operating range. If you shut down the APU immediately after bleed air use without allowing the automatic cool-down phase to run its course, those elevated temperatures become trapped inside. This residual heat can cause thermal stress on components like turbine blades, seals, and bearings, accelerating wear rates and potentially causing oil coking within the system. Over time, this results in premature maintenance alerts and reduced operational reliability.
Airlines operating in hot-and-high environments or dealing with frequent short turnarounds experience these effects more acutely, as repeated hot shutdowns multiply thermal fatigue. In practical terms, ignoring the proper cool-down sequence risks costly repairs and unexpected APU failures that can disrupt flight schedules and increase maintenance downtime, undermining your aircraft’s availability and safety margins.
Understanding the complex interplay of heat dissipation during shutdown helps ensure you maintain the APU’s performance envelope. The ECB monitors these parameters continuously, but your adherence to correct procedures directly influences the system’s ability to protect itself against heat soak damage, enabling smoother, safer operations in the long run.
The APU Shutdown Protocol: Step-by-Step Breakdown
| Step | Action & Description |
|---|---|
| 1. MASTER SW Pressed | Switching off the APU MASTER SW initiates the shutdown. The ECB immediately cuts fuel flow to the APU combustor, ceasing power generation while keeping the turbine spinning to maintain residual energy and prevent thermal shock. |
| 2. Bleed Air Isolation Valve Closure | If bleed air has been used, the ECB commands the closure of the APU bleed air valve. This step prevents hot air from continuing to flow, reducing internal turbine temperature stress during the cooldown phase. |
| 3. Automatic Cooling Run Start | The turbine continues to rotate without fuel input, allowing temperatures to drop gradually. The ECB controls this run, maintaining adequate airflow and oil pressure to dissipate heat and avoid component damage. |
| 4. Inlet Flap Closure | Once turbine speed falls below a defined threshold, the APU inlet flap closes to prevent foreign object ingestion and ensure system safety during the post-shutdown phase. |
| 5. Monitoring for AVAIL Light Extinguish | The AVAIL light turns off when the APU is completely offline and the system is safe to power down. The ECB also removes its ECAM warnings at this point, signaling a successful shutdown. |
Automatic Cool-Down Procedures Controlled by the ECB
The ECB manages the APU cool-down by maintaining airflow through the turbine and gearbox while shutting off fuel flow. This prevents the abrupt temperature drop that can cause thermal stress or oil coking, common in hot shutdown conditions. Depending on bleed air usage, this phase typically lasts around 60 to 90 seconds, allowing temperature gradients to equalize smoothly.
During the cool-down, the ECB continuously monitors turbine speed and temperature sensors, adjusting bleed valves and oil flow to optimize heat dissipation. In scenarios where the APU supplied bleed air for engine start or air conditioning, the controlled procedure becomes even more pronounced to counteract the higher thermal loads. If the cooling run is bypassed—such as by pressing the APU FIRE pushbutton—you effectively subject the turbine and associated components to rapid heat soak damage.
Essential Conditions for Safe Shutdown: Monitoring Indicators and Lights
You should verify several important cockpit indications before considering the APU shutdown complete. The AVAIL light must extinguish, confirming that the APU is no longer available to supply bleed air or electrical power. Concurrently, the ECAM APU page will disappear, indicating that the ECB has finished all shutdown checks and the system has transitioned to a safe state. The final key indicator is the confirmation that the inlet flap is fully closed, guarding against foreign object damage during downtime.
Failure to observe these indicators precisely can signal an incomplete shutdown or residual system issues. If the AVAIL light remains illuminated, it indicates the APU is still spinning or supplying power, and shutting down aircraft systems prematurely could cause electrical or bleed air failures. Similarly, a persistent ECAM page may point to sensor faults or incomplete valve positions, which pilots must address before leaving the cockpit. Fully respecting these signals helps preserve APU longevity and avoids costly maintenance interventions.
Risks of Skipping the Cool-Down Phase
Cutting the cool-down phase short disrupts the APU’s built-in thermal management designed to gradually lower turbine temperatures. This abrupt halt traps residual heat within the turbine and gearbox sections, creating localized hot spots that accelerate metal fatigue and material stress. Over time, these thermal spikes contribute to oil coking—where lubricating oil degrades into solid deposits—which impairs lubrication efficiency and increases friction-related wear. Such damage doesn’t just shorten component life but can cause unscheduled removals for inspection or repair, directly impacting dispatch reliability.
Frequent hot shutdowns also interfere with the proper sealing of internal components. The seals and bearings, engineered to maintain integrity at elevated but controlled temperatures, may begin to degrade prematurely if exposed repeatedly to heat soak conditions. This sets off a cascade of effects including increased leakage, bearing wear, and possible contamination intrusion, further escalating maintenance costs and downtimes. Protecting these components means letting the ECB-managed shutdown and cooling sequence run its full course.
Understanding Heat Stress and Component Degradation
Inside the APU, the turbine and gearbox endure some of the highest temperatures, especially when bleed air extraction is active. When the cool-down phase is skipped, the sudden removal of mechanical support coupled with retained heat causes metal parts to expand unevenly and quickly cool from the outside in. This non-uniform thermal cycling generates micro-cracks and stress concentrations in critical alloys. These microscopic defects accumulate with repeated hot shutdowns, increasing your risk of unexpected failures.
Heat soak also accelerates oxidation and oil breakdown in the turbine’s lubricant system. Oil coking forms varnish and sludge deposits on bearings and seals, restricting smooth movement and increasing frictional heating during the next operation cycle. The degradation triggered here not only affects immediate component performance but can start a worsening cycle of wear and overheating that necessitates earlier overhaul intervals.
Long-Term Implications: Maintenance Alerts and Operational Reliability
Airlines report that skipping the APU cool-down phase systematically drives up the frequency of premature maintenance alerts, particularly related to turbine temperature exceedances and oil system warnings. These alerts flag potential damage to internal components and require immediate investigation, often grounding the aircraft until cleared. This disrupts operational schedules, especially on short turnarounds or in hot-and-high environments where APUs see higher thermal loads regularly.
Unplanned maintenance caused by damaged seals, bearings, or oil coking creates a hidden cost beyond direct repair. It depletes spare parts inventory, demands additional labor hours, and reduces fleet availability — eroding operational reliability metrics that airlines tightly track. In contrast, adherence to the full cool-down sequence helps prevent these costly interruptions, maintaining both APU readiness and overall aircraft dispatch quality.
Moreover, consistent hot shutdowns correlate with increased wear patterns that can eventually lead to failures during critical phases like engine start or ground air conditioning supply, making early detection and prevention through proper cooldown management a key factor in sustaining long-term system health and airline efficiency.
Practical Strategies for Responsible APU Management
Managing the APU effectively revolves around respecting the thermal stresses created by bleed air extraction. You’ll often find the turbine section operating at temperatures exceeding 600°C during bleed air delivery, which means any premature shutdown can trap excessive heat inside critical components. Allowing the automatic cool-down sequence to complete not only mitigates risks like oil coking and seal degradation but also extends the interval between costly maintenance events. In high-demand operational environments, like hot-and-high airports or rapid turnaround cycles, this approach safeguards against unexpected APU shutdowns or degraded performance.
Beyond following system-driven sequences, adopting a mindset attuned to both the environmental conditions and the aircraft’s recent operational history can optimize your APU handling. For instance, on particularly hot days or after extended bleed air use for air conditioning, you might anticipate slightly longer cooling times. Adapting your procedures to these nuances—rather than rushing through shutdown—enhances component longevity and operational reliability with minimal added workload.
Best Practices for Pilots During APU Use
During normal operations with the APU providing bleed air, keep a close eye on the AVAIL light and ECAM indications to track the sequence’s progress. The inlet flap will close late in the shutdown cycle to maintain adequate airflow until heat levels drop sufficiently; monitoring these cues prevents premature cockpit actions that might interrupt the cooling run. Avoid cutting battery power or pressing the APU FIRE pushbutton unless an emergency dictates, as doing so bypasses the critical cooldown phase and invites accelerated turbine wear.
When starting engines using APU bleed air, ensure that the APU has reached stable operating parameters to handle the increased turbine loading. This practice prevents surges or flameouts, which can cause unnecessary strain and potentially extend downtime. You can also use bleed air sparingly during ground conditioning to reduce thermal loading—switching to ground-specific air sources if available helps preserve the APU’s lifespan without compromising cabin comfort.
Checklist for Ensuring Safe APU Shutdown Procedures
Before turning off the aircraft power or leaving the cockpit, confirm that the AVAIL light has extinguished and the ECAM APU page has cleared, signaling the end of the shutdown cycle. Verify visually or via system indications that the inlet flap is fully closed, sealing the system against contamination and thermal losses. Keep in mind that initiating the shutdown sequence does not instantly cut power to the APU; it triggers an ECB-managed process that controls bleed valve closure and cooling timing, so your shutdown should allow this full automated sequence to play out.
Double-check that no bleed air-dependent systems (e.g., air conditioning packs, engine start sequences) are active before pressing the MASTER SW off, as bleeding heat from the APU while still under load compromises the cooldown. Follow documented time delays carefully—cooling runs generally last around 30 to 60 seconds post-bleed air use, but can extend longer depending on environmental factors and operational demands. Incorporate these points into your standard operating procedures to align with manufacturer recommendations and airline maintenance guidelines.
This checklist underscores the significance of patience and procedural discipline during shutdown. While the automatic controls handle the bulk of the logic, your awareness in confirming system states—such as AVAIL light status and inlet flap position—prevents inadvertent early power removal or system neglect. Safeguarding the APU through these steps ensures its readiness for the next flight and contributes directly to flight safety and cost-effective maintenance.
Summing up
The A320 APU MASTER SW Bleed Air Shutdown sequence involves a carefully controlled process designed to protect the APU’s internal components from thermal damage. When you use bleed air, the turbine section operates at elevated temperatures, making the automatic cool-down phase important to dissipate residual heat. Skipping or bypassing this sequence can lead to accelerated wear and potential maintenance issues, so it is important for you to allow the ECB-managed shutdown procedure to complete fully.
By understanding the timing and logic behind the APU shutdown, you can better support aircraft reliability and operational efficiency. Your awareness of the AVAIL light, ECAM indications, and inlet flap status helps ensure the APU is properly secured before you power down or leave the cockpit. With these insights, you are better equipped to manage the APU safely and optimize its lifespan in your A320 operations.
