Airbus A320 Normal Law Explained: Understanding Flight Control and Protections

Welcome to the fascinating world of Airbus A320 flight control, where innovation meets precision. In this article, we’ll embark on an enlightening journey to demystify the core principles of Normal Law, a critical component of the Airbus A320’s advanced fly-by-wire flight control system. Prepare to elevate your understanding of how this remarkable aircraft maintains its exceptional stability and safety.

What Is Normal Law in the Airbus A320

Normal Law represents the primary operational mode of the Airbus A320’s sophisticated electronic flight control systems, which are integral to modern Airbus aircraft. This flight control law governs the aircraft’s control surfaces and how pilot control inputs are translated into actual aircraft control, providing extensive flight envelope protection. Unlike traditional mechanical control systems, Normal Law utilizes advanced flight control computers to manage the aircraft’s behavior, ensuring a higher degree of safety and operational efficiency within its flight envelope. It’s the default and most comprehensive control mode, offering a seamless flight experience.

A320 Flight Control Nowmal Law Protections (Video)

How Pitch Control Works in Normal Law

Pitch control in Normal Law is meticulously managed by the fly-by-wire electronic flight control system, adapting its behavior across different flight phases to ensure optimal performance and safety. This system intelligently interprets pilot inputs from the sidestick controller, translating them into precise adjustments of the elevator and trimable horizontal stabilizer (THS) to maintain the desired flight path and pitch attitude. Understanding these distinct modes—Ground, Flight, and Flare—is essential for appreciating the full capabilities of the Airbus A320’s normal law pitch control.

Ground Mode – Direct Sidestick-to-Elevator Relationship

During the ground mode, which is active when the aircraft is on the ground, the pitch control operates with a direct sidestick-to-elevator relationship. In this control law, the flight control system provides a direct input to the elevators based on the pilot’s sidestick commands, similar to a direct law. This allows the flight crew to have precise control over the aircraft’s pitch attitude during taxiing, takeoff roll, and landing rollout. The primary flight control surfaces, specifically the elevators, respond proportionally to the sidestick movements, giving the pilot immediate feedback and authority over the aircraft’s pitch.

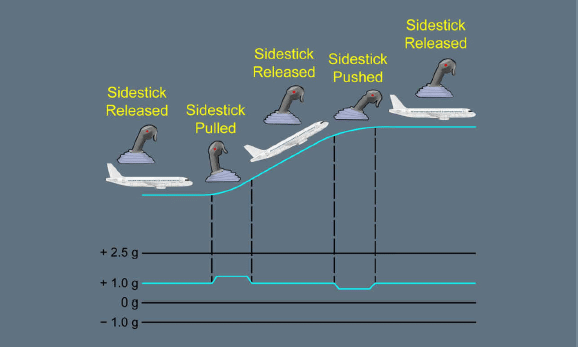

Flight Mode – Load Factor Demand and 1g Stability

The normal-law flight mode is a sophisticated load-factor-demand mode, offering automatic trim and comprehensive protection throughout the flight envelope. Under this control law, the sidestick controllers dictate the elevator and THS movements to maintain a load factor proportional to stick deflection, independent of speed. When the sidestick is neutral and the wings are level, the system maintains 1g in pitch, corrected for pitch attitude, eliminating the need for the flight crew to manually trim for changes in speed or configuration. Pitch trim is automatic, whether in manual mode or when the autopilot is engaged, ensuring exceptional flight stability and simplified aircraft control for the flight crew.

Flare Mode – Manual Flare with THS Freeze

As the Airbus A320 transitions into the flare mode during the landing sequence, the pitch control behavior shifts to facilitate a smooth touchdown. In this critical phase, the flight control system temporarily freezes the Trimable Horizontal Stabilizer (THS) in its pre-flare position, allowing the pilot to perform a manual flare using direct elevator control. This provides the flight crew with a more traditional and intuitive feel for the final moments of the approach, enhancing their control authority for a precise and controlled landing. This temporary shift from the typical normal law provides direct control during the very final moments of the flight.

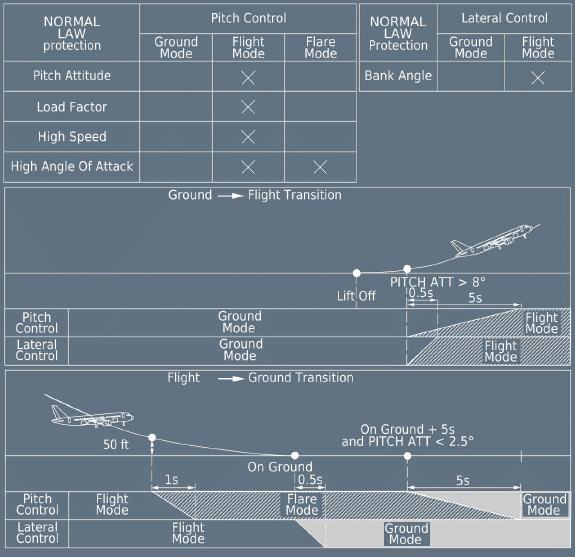

Understanding the Built-In Protections of Normal Law

In the realm of Airbus A320 normal law, the built-in protections are paramount, acting as an invisible guardian throughout every flight. These sophisticated features, integral to the fly-by-wire electronic flight control system, extend comprehensive flight envelope protection, ensuring the aircraft remains within safe operational limits. Unlike traditional mechanical control systems, normal law utilizes advanced flight control computers to constantly monitor and manage the aircraft’s behavior, providing a seamless layer of safety that significantly enhances flight augmentation and overall aircraft control. This allows the flight crew to maintain precise control inputs while benefiting from continuous envelope safeguarding.

Load Factor Limits for Structural Safety

The normal law’s load factor protection is a critical element, meticulously designed to prevent the aircraft from exceeding its structural limits during various maneuvers. This protection system ensures that the load factor, which represents the forces acting on the aircraft, remains within a safe range, even during aggressive control inputs. By preventing excessive G-forces, the flight control system effectively safeguards the airframe from potential damage, reinforcing the integrity of the airbus aircraft. This intelligent control law provides continuous envelope protection, ensuring that the flight path is always within safe boundaries.

Pitch Attitude Limits to Prevent Energy Mismanagement

Pitch attitude protection is another vital safeguard within normal law, preventing the aircraft from reaching extreme pitch angles that could lead to energy mismanagement. This protection ensures that the pilot maintains appropriate pitch control, preventing the nose from becoming too high or too low, which could compromise the flight envelope. By limiting the range of pitch attitudes, the fly-by-wire flight control system ensures the aircraft maintains a stable and controlled flight path, especially during critical phases of flight, reinforcing overall flight stability and preventing dangerous situations.

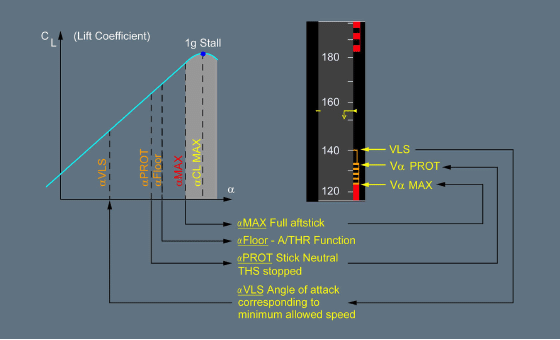

High Angle of Attack Protection Against Stall

High angle of attack protection is a cornerstone of normal law’s safety features, specifically designed to prevent the aircraft from entering an aerodynamic stall. This angle of attack protection continuously monitors the airflow over the wings, and if the angle becomes too great, the flight control system automatically adjusts the control surfaces to reduce the angle of attack, thereby preventing a stall. This crucial protection ensures the aircraft remains within its safe flight envelope, maintaining lift and control authority, which is a significant advantage over older mechanical control systems.

Overspeed Prevention with High Speed Protection

High speed protection is an essential component of normal law, actively working to prevent the aircraft from exceeding its maximum operational speed (Vmo/Mmo). This critical protection engages automatically if the aircraft approaches its limiting speed, gently raising the nose to reduce speed and ensure the aircraft remains within its safe flight envelope. This proactive measure, managed by the flight control computer, prevents structural damage and maintains the integrity of the airbus aircraft, showcasing the sophisticated capabilities of the normal law control mode.

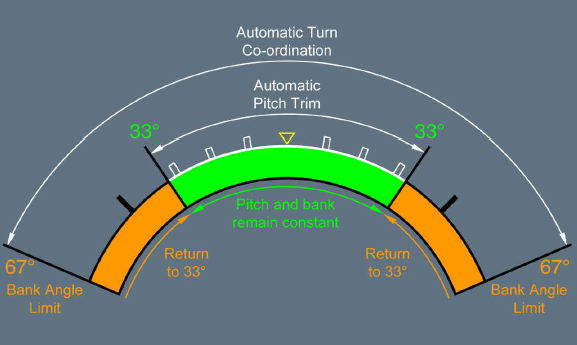

Bank Angle Protection and Roll Behavior

Bank angle protection is a key feature of the normal law lateral mode, designed to prevent the aircraft from exceeding safe bank angles during turns, thereby maintaining the stability of the flight path. This protection automatically limits the maximum bank angle, typically to 67 degrees, and provides an automatic roll back to 33 degrees if the sidestick is released at higher bank angles. This ensures that the airbus aircraft remains within a safe and manageable roll envelope, preventing excessive or uncontrolled roll behavior and enhancing overall flight control.

How Lateral Control Works in Normal Law

Lateral control in Normal Law is meticulously managed by the advanced fly-by-wire electronic flight control system, ensuring precise and stable roll behavior throughout the flight. This sophisticated system translates pilot control inputs from the sidestick into precise adjustments of the ailerons and spoilers, which act as primary flight control surfaces, to achieve the desired bank angle and roll rate. Unlike traditional mechanical control systems, normal law lateral mode offers significant flight augmentation, providing comprehensive bank angle protection and automatically coordinating turns for optimal flight stability. This intricate control law provides the flight crew with intuitive control over the aircraft’s roll while maintaining stringent flight envelope protection.

Sidestick Roll Rate Command Logic

The sidestick roll rate command logic in normal law dictates how the aircraft responds to pilot inputs for rolling maneuvers. When the flight crew moves the sidestick left or right, the flight control computer interprets this as a demand for a specific roll rate, not a direct command for a fixed bank angle. The system then precisely moves the ailerons and spoilers to achieve and maintain that commanded roll rate, providing a natural and intuitive feel for aircraft control. This allows for smooth and predictable roll responses, enhancing the overall flight experience and contributing to the excellent flight stability of the Airbus aircraft within its operational flight envelope.

Rudder Coordination and Dutch Roll Damping

In Normal Law, rudder coordination and Dutch roll damping are automatically managed by the flight control system, ensuring seamless and stable lateral-directional handling. During turns, the system automatically applies the necessary rudder input to prevent adverse yaw and maintain a coordinated turn, eliminating the need for the flight crew to manually coordinate with rudder pedals. Furthermore, the fly-by-wire electronic flight control system inherently provides Dutch roll damping, actively counteracting this oscillatory motion to maintain the aircraft’s stability, even in turbulent conditions. This level of automation simplifies the control of the aircraft, allowing the flight crew to focus on the flight path and overall situational awareness, while still benefiting from comprehensive flight envelope protection.

Managing Engine-Out Scenarios with Sideslip Guidance

Managing engine-out scenarios in the Airbus A320 with Normal Law involves sophisticated sideslip guidance, a crucial feature that aids the flight crew in maintaining precise aircraft control. In such an event, where one engine is no longer producing thrust, the flight control system automatically compensates for the asymmetric thrust by providing visual cues and subtle control adjustments. This ensures that the aircraft remains within its safe flight envelope and that the flight path can be maintained effectively. This intelligent control mode highlights how normal law provides a significant layer of safety and automation even during challenging operational situations.

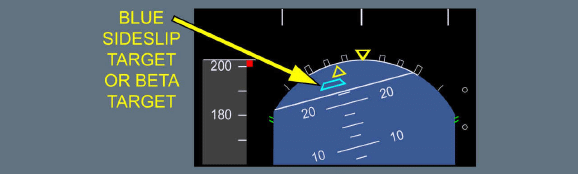

Visual Rudder Guidance Using the Blue Slip Indicator

The visual rudder guidance, specifically the blue slip indicator, is an invaluable tool provided by the normal law flight control system during engine-out operations. This intuitive display on the primary flight display indicates the amount of rudder input required to maintain zero sideslip, effectively guiding the flight crew to apply the correct rudder pressure to counter the asymmetric thrust from the inoperative engine. By following the blue slip indicator, the pilot can efficiently maintain a coordinated flight path, minimize drag, and ensure optimal performance, demonstrating the remarkable capabilities of the airbus flight control laws in providing clear and actionable guidance.

Autopilot Behavior and Manual Override in Normal Law

The integration of autopilot functionality within the normal law of the Airbus A320 showcases a seamless blend of automation and pilot control, providing an enhanced layer of safety and efficiency. While the autopilot takes over the intricate tasks of maintaining the flight path and adherence to the flight envelope, the flight crew retains ultimate control authority through manual override capabilities. This sophisticated interaction ensures that the aircraft operates within its intended flight envelope, benefiting from the precise and continuous adjustments of the fly-by-wire electronic flight control system, while still allowing for pilot intervention when necessary. The autopilot, in essence, leverages the underlying normal law to deliver consistent and protected aircraft control.

Autopilot Disengagement Triggers

The autopilot in the Airbus A320, operating under the sophisticated normal law, is designed with various triggers for disengagement, ensuring that the flight crew can quickly and intuitively regain full manual control of the aircraft when required. These triggers can range from simple pilot control inputs, such as moving the sidestick, to more complex system detections, like a significant deviation from the commanded flight path or the activation of certain flight envelope protection features. This immediate disengagement capability is a crucial safety mechanism, empowering the flight crew to override automation and exercise their control authority, transitioning from automated control to manual control of the aircraft while still benefiting from the core protections of normal law.

Transition to Flare and THS Freeze Zones

As the Airbus A320 transitions into the critical flare phase during landing, the normal law adapts its behavior to facilitate a smooth and controlled touchdown, particularly regarding the Trimable Horizontal Stabilizer (THS). In this specific zone, the flight control system temporarily “freezes” the THS, preventing automatic pitch trim adjustments that are characteristic of the normal law flight mode. This allows the flight crew to perform a manual flare using direct elevator control, providing a more traditional and tactile feel for the final moments of the approach. This deliberate modification of the normal law’s pitch control ensures that the pilot has precise control authority for a safe and accurate landing within the flight envelope.

How Normal Law Enhances Flight Safety

Normal law is undeniably a cornerstone of enhanced flight safety in the Airbus A320, serving as a comprehensive guardian that continuously monitors and optimizes the aircraft’s behavior. By integrating advanced flight envelope protection, load factor protection, pitch attitude protection, high angle of attack protection, and high speed protection, this sophisticated control law significantly reduces the pilot’s workload while simultaneously preventing the aircraft from inadvertently entering unsafe flight conditions. The fly-by-wire electronic flight control system, powered by the flight control computer, ensures that all control inputs are translated into safe and efficient movements of the primary flight control surfaces, offering an unparalleled level of aircraft control and reinforcing the safety of every flight.

Conclusion

In conclusion, the Airbus A320’s normal law is a marvel of modern aviation technology, representing a paradigm shift in aircraft control and safety. This sophisticated flight control system, with its comprehensive flight envelope protection, precise pitch control, and intelligent lateral control, redefines the interaction between pilot and machine. From the nuances of load factor protection and high angle of attack protection to the seamless integration of autopilot functionality and engine-out sideslip guidance, normal law ensures that the Airbus aircraft remains within its safe operational limits, significantly enhancing flight safety and operational efficiency. By providing continuous envelope protection and intuitive control authority, normal law truly empowers the flight crew to navigate the skies with unparalleled confidence and precision.
