Airbus A320 Ice & Rain Protection System – Probe Heaters, Wing Anti-Ice & ECAM Logic

The A320 ice protection system combines pneumatic anti-ice, electrical heating, and ECAM monitoring to keep critical components ice-free and flight data reliable in visible moisture and low temperatures.

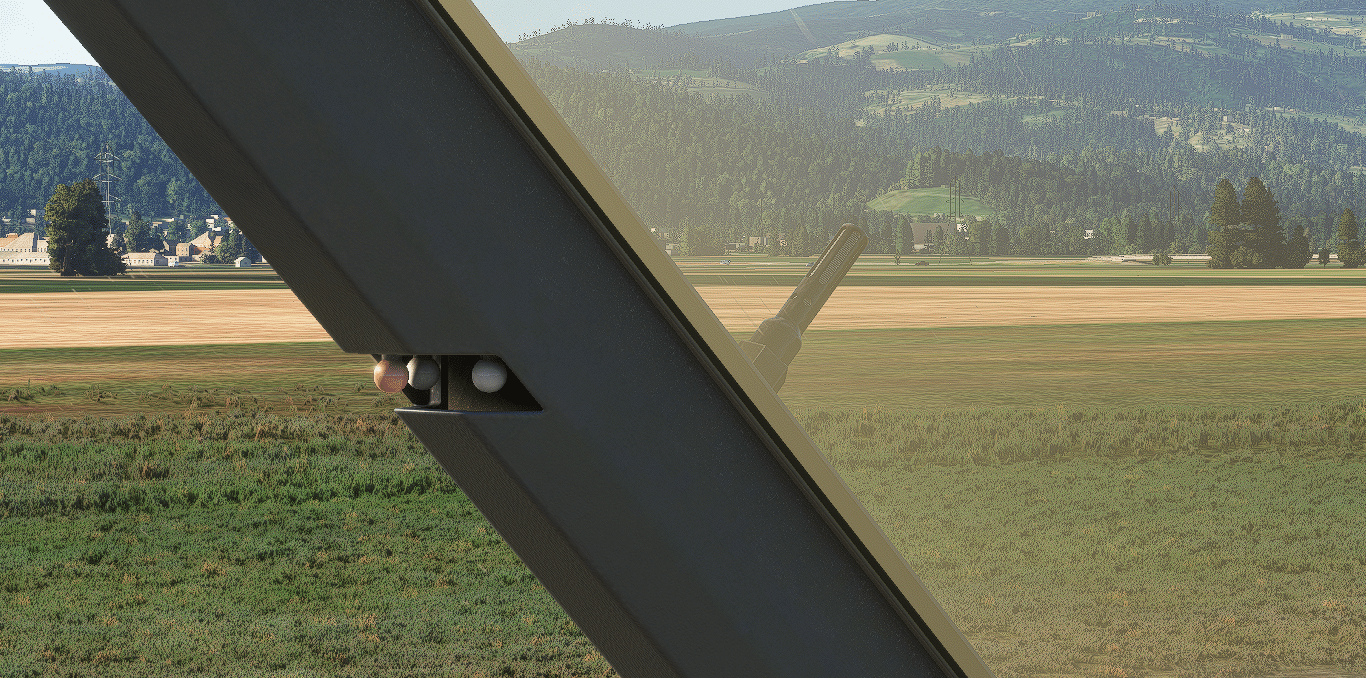

This system ensures the unrestricted operation of the aircraft by preventing ice accumulation on various areas of the aircraft. Ice formation can significantly affect aircraft performance, making the A320 ice and rain protection system essential. A cockpit visual ice indicator helps crews confirm the formation of ice externally, while the electronic centralized aircraft monitor presents system status and cautions in real time.

Let’s familiarize with the system a bit more.

What Counts as Icing Conditions on the A320?

Icing conditions exist when the outside air (on ground) or total air temperature (in flight) is 10 °C or below with visible moisture present (cloud, fog, rain, snow, ice crystals). On the ground, contamination like snow, slush, or standing water can freeze on nacelles and sensor probes, so crews plan anti-ice use early. In practical terms, crews treat visible moisture in any form as a trigger, and remember that icing conditions also exist during low-level precipitation or ice crystal conditions.

Engine Anti-Ice (EAI) Protection: How It Works?

The A320 protects each engine nacelle lip with hot bleed air from the high-pressure compressor. Pilots control it via the ENG ANTI ICE pushbuttons; when selected ON, the anti-ice valve opens and routes hot air to the nacelle. This engine anti-ice system (often referred to as engine anti ice) interfaces with the aircraft’s electrical system for sensing and feedback, and the system allows automatic protections such as idle increases.

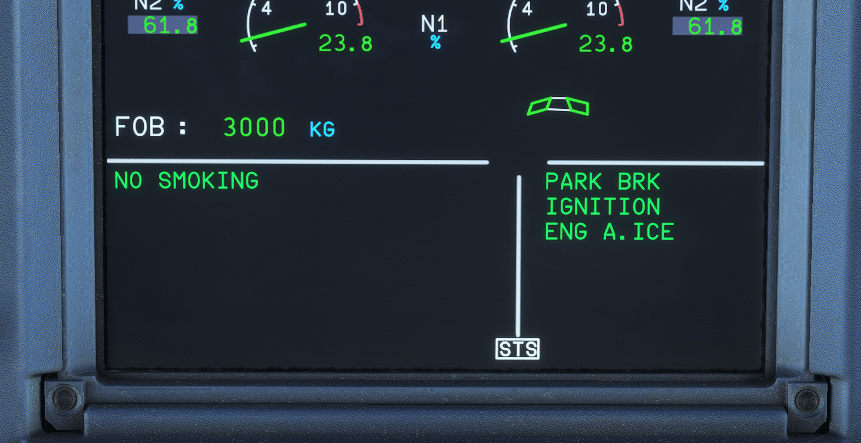

What You’ll See on ECAM?

• E/WD memo: “ENG 1(2) ANTI ICE ON” when active.
• Automatic idle increase: FADEC commands higher idle to supply bleed pressure (expect small N1/N2 changes).
• Valve/logic checks: ECAM cautions if valve position disagrees with selection; for example, “engine anti-ice valve is open” when it should be closed.

When to Use EAI?

• Before entering visible moisture with TAT ≤ +10 °C (all phases).
• During descent through clouds until leaving icing conditions.
• When operating in icing conditions and heavy rain, select EAI early to prevent accretion.

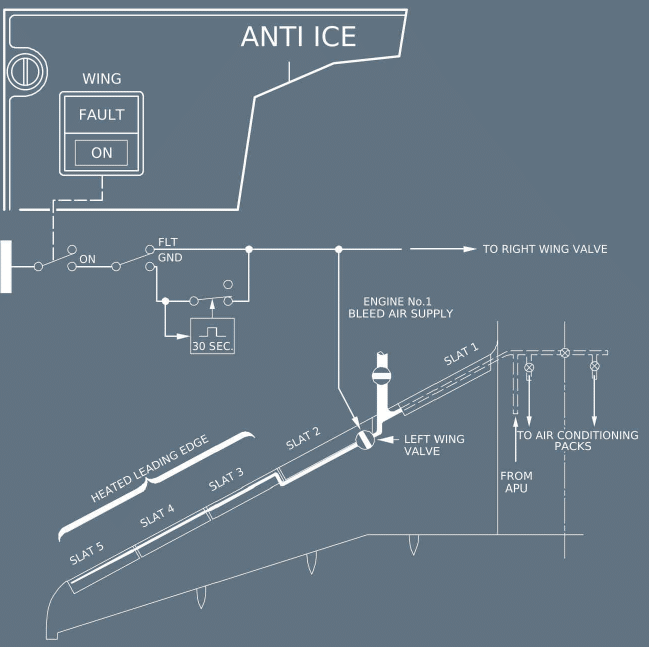

Wing Anti-Ice (WAI): Leading-Edge Slats

Wing anti-ice heats the three outboard slats on each wing using hot bleed air through wing anti-ice valves. It’s normally inhibited on the ground (except for test) and selected in flight when ice is accumulating or expected for an extended period. In procedures, you may see the term wing anti-icing; both describe the same function. When wing anti-ice is selected, crews should anticipate minor bleed-performance effects.

ECAM Behavior & Performance Notes

• E/WD memo: “WING ANTI ICE ON” in flight.
• Bleed trade-offs: Small impact on packs/bleed margins is normal.
• Ground test: Brief functional check permitted per SOP.
• If the system detects a leak or overheat in a duct, ECAM will caution and the anti-ice valve automatically closes to protect the pneumatic network.

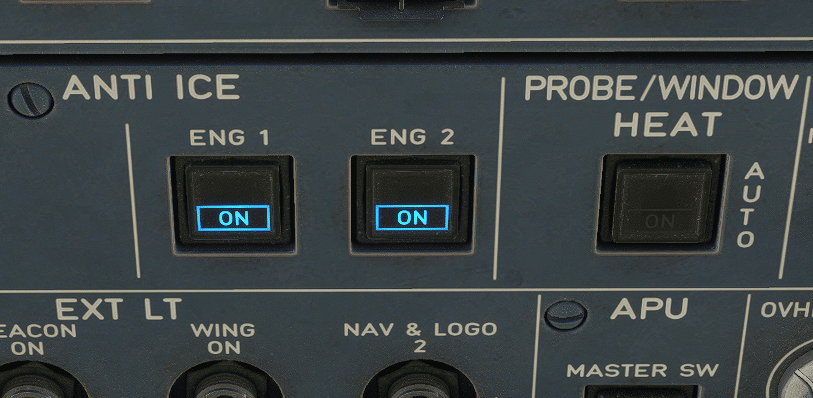

Probe & Window Heating: Keep the Data True

The A320 uses electrical heating for pitot, static, AOA, and TAT probes, plus windshields/side windows (anti-ice and anti-fog zones). With at least one engine running, probe/window heat is automatic; on battery only, a reduced-set probe heat protects essentials. The aircraft uses electrical heating continuously on windshields and side windows to prevent fogging and ice.

Why It Matters?

• Prevents erroneous air data that could affect ADIRS and flight guidance.
• ECAM alerts isolate faulty heat elements and prevent window damage.
• Clear controls for this system on the overhead panel simplify identification, selection, and monitoring.

Rain Removal: Wipers and (If Installed) Repellent

Each pilot has a windshield wiper (OFF/SLOW/FAST). Some fleets include a repellent feature; the rain protection system allows crews to improve visibility during heavy precipitation and quickly remove ice or water film at higher speeds.

ECAM Logic: What to Expect?

The ECAM surfaces anti-ice status on the Engine/Warning Display and system details on the COND page. It also suppresses nuisance alerts during critical phases to reduce workload. Messages guide crews through the correct sequence by turning the system on or off, and will highlight abnormal conditions so the system allows the aircraft to remain protected with minimal pilot head-down time.

Common Messages & Cautions

• ENG 1(2) ANTI ICE ON / WING ANTI ICE ON (green memos when active).
• Valve disagreement cautions if commanded vs. sensed position differ.
• Probe/window heat advisories during non-standard electrical states.
• Leak or overheat logic: if the system detects a leak, isolation occurs and an anti-ice valve automatically closes.

Cold-Weather Technique: Practical Tips

• Plan ahead: Turn EAI ON before entering visible moisture at TAT ≤ +10 °C.
• Use WAI for persistent icing or when accretion is observed/suspected.
• Monitor ECAM for anti-ice status, valves, and electrical loads.
• Keep EAI ON during descent through icing layers; remove when clear and temperature rises above +10 °C without visible moisture.
• Remember there are effectively two separate ice management tasks: nacelle protection and wing leading-edge protection—treat them independently based on conditions.

System Design: Reliability You Can Trust

Anti-ice valves and electrical heaters are monitored with fail-safe logic. Valves default safely; heaters are supervised; ECAM cross-checks position, temperature, and power to highlight abnormalities early. Thanks to integrated protections, the system allows the aircraft to continue safely in adverse weather while minimizing crew workload.

Key Takeaway

The A320 ice protection system blends pneumatic anti-ice, electrical heating, and ECAM logic so crews can manage icing confidently. Mastering when to use engine anti-ice, how wing anti-ice affects bleed/performance, and what probe/window heat protects will keep both the airframe and your data clean in the worst winter weather.

Final words about anti-ice & rain protection system

The A320 ice protection system is an advanced framework that ensures the aircraft operates safely in challenging conditions. Engine anti-ice functionality leverages bleed air from the pneumatic system to prevent ice accumulation on the engine nacelle, while wing anti-ice is essential for maintaining aerodynamic performance, especially in ice conditions.

Flight crews can activate the anti-ice systems directly from the overhead panel, using straightforward controls for this system, and if required, the sequence by turning the system off is equally simple. Should a duct overheat occur, the system detects a leak or overtemp, and an anti-ice valve automatically closes for protection.

Furthermore, windshield heating and wipers are integral to the A320 ice and rain protection system, enhancing visibility during icing conditions and heavy rain. The heating system effectively prevents ice accretion on side windows and windshields, ensuring clear visibility for the cockpit.

In summary, the A320 ice and rain protection system exemplifies a sophisticated integration of anti-icing technologies and protection systems that collectively ensure safe operation of the Airbus A320 in adverse weather, mitigating risks and preserving efficiency.
