What Is TCAS? A Comprehensive Guide to Traffic Collision Avoidance Systems

You rely on multiple layers of safety when flying, but what happens if visual scanning and air traffic control miss an imminent collision? That’s where TCAS, the Traffic Collision Avoidance System, steps in as your last line of defense against mid-air collisions. TCAS actively monitors nearby aircraft and provides timely alerts and maneuver guidance to help you avoid dangerous encounters.

It is classified as an alert and collision avoidance system that enhances the safety of equipped aircraft in civil aviation. The system uses advanced technology, such as the TCAS II system, to alert pilots of potential collision threats and provide resolution advisories (RA) to maintain safe separation between aircraft. Airborne collision avoidance systems, like TCAS, are vital for both general aviation aircraft and commercial airliners, ensuring that air traffic controllers and aviation authorities can rely on a robust solution to mitigate the risk of collision in the airspace around an aircraft.

In this guide, you’ll discover how TCAS works, its critical alerts, and why following its instructions can make the difference between safety and disaster in the sky, especially considering the importance of compliance with federal aviation regulations and the impact of incidents like the 2002 Überlingen mid-air collision.

The Inception of TCAS: A Safety Revolution in Aviation

The devastating events of the mid-20th century pushed aviation experts to rethink air safety. TCAS emerged as a game-changer, designed to fill gaps left by human error and radar limitations. By introducing an onboard system that independently detects and warns of potential mid-air collisions, TCAS transformed how pilots maintain separation. This innovation not only enhanced situational awareness but added an automated layer of defense against the rare yet catastrophic risk of aircraft converging unexpectedly.

The Tragedy That Sparked Change

The 1956 mid-air collision between a United Airlines DC-7 and a TWA Constellation over the Grand Canyon remains one of aviation’s darkest moments. All 128 passengers and crew perished when the two aircraft, flying in uncontrolled airspace, collided. This heartbreaking disaster exposed the deadly consequences of the absence of an automated collision avoidance mechanism and propelled the search for a technological solution that would prevent such loss of life in the future.

The Evolution of Collision Avoidance Technology

Initial attempts at collision avoidance focused on ground radar and pilot visual scanning, but these methods had inherent limitations. By the 1970s, developers began exploring the use of transponder signals for aircraft-to-aircraft communication as the foundation for collision detection. This approach led to the creation of TCAS, which actively interrogates nearby transponders and calculates potential conflicts without relying on ground control.

Developing TCAS involved overcoming challenges like ensuring both aircraft involved in a potential collision would receive coordinated advisories. Early systems struggled to communicate maneuvers reliably, which meant pilots might receive conflicting instructions. With the advent of Mode S transponders allowing selective interrogation and aircraft cooperation, TCAS II became capable of issuing coordinated Resolution Advisories by the 1990s. Although horizontal avoidance through TCAS III was explored, programming complexities stalled its adoption, leaving vertical maneuver advisories as the primary and most effective strategy for immediate conflict resolution.

Decoding TCAS: Mechanics and Functionality

TCAS continuously interrogates nearby aircraft transponders, gathering identification and altitude data to evaluate collision risks. Your aircraft’s TCAS computer processes this data in real time, predicting potential conflicts by calculating the time and distance to the closest point of approach. When separation decreases below predefined limits, TCAS activates visual and audio alerts tailored to the severity of the threat, ensuring you receive timely, actionable information to maintain safe distances from other traffic.

How TCAS Interrogates and Analyzes Nearby Traffic

Your TCAS system actively sends interrogation signals that prompt transponders on nearby aircraft to reply with their position and altitude information. This continuous two-way communication lets TCAS monitor multiple targets simultaneously. By analyzing relative altitudes, closing speeds, and projected flight paths, TCAS calculates whether the trajectory of another aircraft could intersect with yours, enabling it to warn you well before a potential collision becomes imminent.

Understanding Alerts: Traffic Advisory vs. Resolution Advisory

Traffic Advisories (TAs) provide an early warning, alerting you to nearby aircraft that are approaching but not yet posing an immediate threat. Resolution Advisories (RAs) demand immediate pilot action, instructing you to climb or descend to increase vertical separation. TAs allow you to maintain your current flight path while increasing vigilance, whereas RAs override previous clearances and require full compliance to avoid collision.

Traffic Advisories serve as a heads-up you can anticipate visually spotting the traffic, highlighting intruders with altitude and trend arrows on your display. They don’t prompt you to change course or altitude but prepare you for possible escalation. When the situation deteriorates to where collision risk becomes imminent within 15 to 35 seconds, TCAS issues a Resolution Advisory. At this stage, the system commands specific vertical maneuvers, such as “Climb, climb!” or “Descend!”, supported by audio and VSI visual cues with red zones indicating unsafe climb or descent rates. You must hand-fly these maneuvers immediately, disengaging autopilot if necessary, because vertical escapes provide the most reliable means of collision avoidance at high speeds. Not following these instructions can lead to catastrophic outcomes, as highlighted by incidents like the 2002 Überlingen collision, where not adhering uniformly to TCAS advisories had fatal consequences.

Navigating Under Pressure: Pilot Response Protocols

During a TCAS alert, your ability to process information swiftly and act decisively can make all the difference. Traffic Advisories prompt heightened vigilance without immediate action, while Resolution Advisories demand rapid vertical maneuvers to avoid collision. Splitting tasks efficiently between pilots—one flying the aircraft, the other monitoring instruments and communicating—ensures adherence to TCAS commands and maintains situational awareness despite the pressure. Immediate feedback from the system and clear, concise communication with ATC help you maintain control during these tense moments.

The Role of TCAS in Standard Operating Procedures

TCAS integrates seamlessly into your flight’s standard operating procedures by providing continuous traffic monitoring and alerts throughout the flight phase once switched to active mode. It complements visual scanning and ATC instructions by acting as an independent safety net. Pilots train rigorously on responding to Traffic and Resolution Advisories according to established protocols, ensuring that TCAS-induced deviations are coordinated and communicated properly, minimizing confusion during potential conflicts.

Responding to Alerts: A Step-by-Step Guide

When a Traffic Advisory activates, you begin by visually locating the intruder while maintaining current clearance. On escalation to a Resolution Advisory, disengaging autopilot and executing the vertical escape maneuver as instructed takes priority. One pilot flies the aircraft following TCAS commands, while the other handles radio communication and monitoring. Once clear of conflict, you promptly notify ATC before resuming normal flight parameters. This structured approach minimizes risk and streamlines responses under time-sensitive conditions.

Responding to Alerts: Key Actions and Sequence

This stepwise process reduces ambiguity during alerts and ensures both crew members understand their roles immediately. By designating task division—pilot flying focuses on vertical escape mandated by TCAS, while the other manages communications and monitors traffic—you maintain full control of the situation. The VSI’s color-coded climb/descent bands and voice commands guide you precisely, even under stress. Past incidents, such as the 2002 Überlingen collision, underscore how strict adherence to these steps can prevent tragedy by avoiding conflicting instructions between ATC and TCAS.

Diverse Systems: The TCAS Spectrum

The range of TCAS systems has evolved to meet different aircraft needs, from simple traffic awareness to fully coordinated collision avoidance. As you step from smaller planes equipped with TCAS I to large commercial jets running TCAS II, the functionality scales up—offering more proactive advisories and automated coordination. Although the ambitious TCAS III aimed to add horizontal avoidance, its complexity halted development. Understanding these variants helps you appreciate how TCAS adapts to aircraft roles and operational environments.

Exploring TCAS I: Basic Traffic Awareness

TCAS I provides you with traffic advisories only, warning you when other transponder-equipped aircraft approach, but it doesn’t issue resolution commands. Common in smaller turboprops and regional aircraft, it uses Mode C transponders and relies on your judgment for evasive action. Its less complex setup makes it accessible for general aviation, offering basic situational awareness without the automated maneuver guidance that larger airliners require.

TCAS II: The Standard for Modern Aircraft

Most commercial airliners are equipped with TCAS II, which enhances safety by delivering both traffic advisories and critical resolution advisories. Powered by Mode S transponders, TCAS II actively coordinates with nearby aircraft to issue vertical maneuvers like “Climb” or “Descend,” guiding you decisively to avoid collisions. Its role in preventing accidents has made it a global aviation standard.

TCAS II’s ability to coordinate advisories between aircraft is a key safety feature. It exchanges data so both pilots receive complementary instructions that don’t conflict, cutting the risk of mid-air incidents. Multiple software iterations of TCAS II have refined algorithms to improve prediction accuracy and reduce nuisance alerts, but the pilot interface remains consistent. By relying on vertical escape paths rather than lateral turns, TCAS II executes maneuvers that aircraft can perform quickly and predictably, crucial in the narrow reaction window before a collision.

The Discontinuation of TCAS III: Lessons Learned

TCAS III aimed to expand advisory commands to include horizontal maneuvers alongside vertical ones, potentially offering more flexible avoidance options. However, the complexity of safely handling left/right turn advisories in coordination with vertical commands proved insurmountable. After extensive research in the 1980s and 90s, development ceased, highlighting the technical challenges of integrating multidimensional advisories.

The abandonment of TCAS III underscores the balance between innovative safety concepts and operational reliability. Algorithms struggled to anticipate unpredictable pilot reactions and the intricate dynamics of horizontal maneuvers at high speed. Instead, prioritizing vertical resolution advisories through TCAS II maintained a simpler, more effective solution, reinforcing the importance of pragmatic design in collision avoidance systems.

Training for Safety: Preparing Pilots to Trust TCAS

Rigorous training ensures you respond correctly to TCAS alerts under pressure. Simulators replicate real-world scenarios where pilots practice distinguishing between Traffic Advisories and Resolution Advisories, honing split-second decision-making skills. This experience builds confidence in the system’s commands, so you trust TCAS even when it conflicts with ATC instructions. Familiarity with cockpit displays, audio cues, and maneuver execution minimizes hesitation during actual encounters, reinforcing TCAS as an integral part of your collision avoidance toolkit.

Operational Procedures Before and During Flight

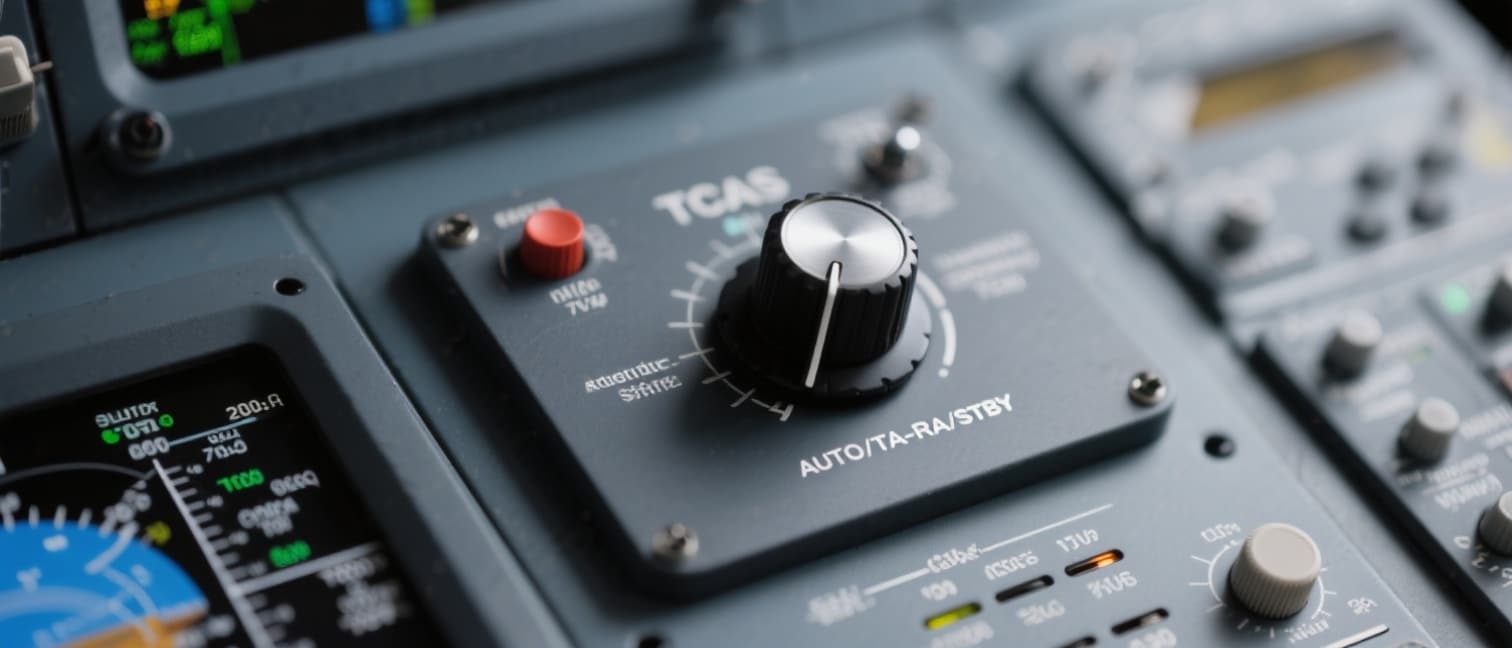

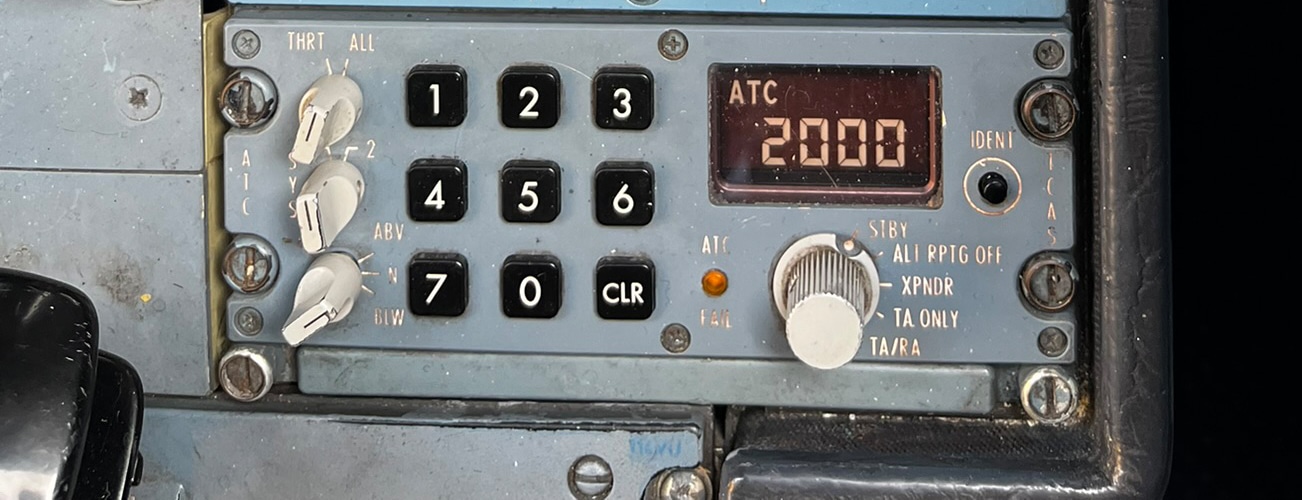

You’ll typically keep TCAS on Standby while taxiing to avoid unnecessary ground alerts, enabling TA/RA mode just before takeoff. Throughout flight, TCAS continuously scans airspace, displaying nearby traffic to enhance situational awareness without overwhelming you with alerts. Monitoring this information helps anticipate potential conflicts early, complementing visual scanning and ATC instructions until the system issues a TA or RA, prompting appropriate responses.

Ensuring Effective Communication with ATC

Once a TCAS Resolution Advisory prompts maneuvering, you must immediately notify ATC of your deviation, clearly stating it’s a TCAS RA. This quick, precise communication prevents confusion and ensures controllers understand you’re following collision avoidance procedures. ATC won’t override TCAS commands, so informing them maintains coordination and helps manage separated traffic afterward. Transparency during these moments keeps the entire traffic flow safe and organized.

Clear communication with ATC during TCAS events reduces the risk of conflicting instructions. Immediate radio calls declaring deviations due to TCAS RAs are standard protocol, preventing controllers from issuing commands that might contradict the automated system’s critical escape maneuvers. The Überlingen collision in 2002 highlighted the dangers of misaligned pilot and controller actions; since then, procedures have emphasized prioritizing TCAS over ATC directives during RAs. You’ll find that controllers rely on your reports to adjust traffic sequencing and ensure separation as you resume normal flight once conflict is resolved and TCAS announces “Clear of conflict.” This shared understanding between pilots and controllers streamlines incident management and reinforces TCAS’s role as the final safety net.

Conclusion – What is TCAS

To wrap up, understanding TCAS equips you with knowledge of how this system acts as an independent safety net, providing timely alerts and actionable guidance to avoid mid-air collisions. By continuously monitoring nearby aircraft through transponder signals, TCAS helps you maintain situational awareness and respond effectively to potential threats. Whether you operate smaller aircraft with TCAS I or larger airliners with TCAS II, knowing how to interpret its advisories ensures you can confidently take appropriate action to keep your flight safe.

Moreover, TCAS plays a critical role in enhancing aviation safety by implementing advanced features such as TCAS II version 7.1 and ACAS X, which are designed to improve collision avoidance capabilities. The system not only issues resolution advisories to pilots but also generates collision warnings when aircraft are on a collision course. With types of TCAS like TCAS II version 7.0 and modern TCAS II, aircraft are able to monitor the traffic situation around them effectively, ensuring a safer flying environment.

The Federal Aviation Administration and the International Civil Aviation Organization have endorsed the airworthiness approval of traffic alert and collision avoidance systems, highlighting their importance in modern aviation. TCAS technology includes components like TCAS antennas and interfaces that allow for seamless communication between aircraft, enabling them to monitor the traffic around them. Aircraft with a maximum take-off weight are particularly equipped with TCAS to enhance their safety during flight operations.

As the aviation industry evolves, the implementation of TCAS and its next-generation versions continues to rely on advancements in ground-based air traffic control systems and ACAS II, which provide a comprehensive safety framework. Ultimately, understanding the various versions of TCAS, including ACAS XA and ACAS XO, empowers pilots and operators to navigate the skies more safely, fostering a culture of safety that is paramount in aviation.
